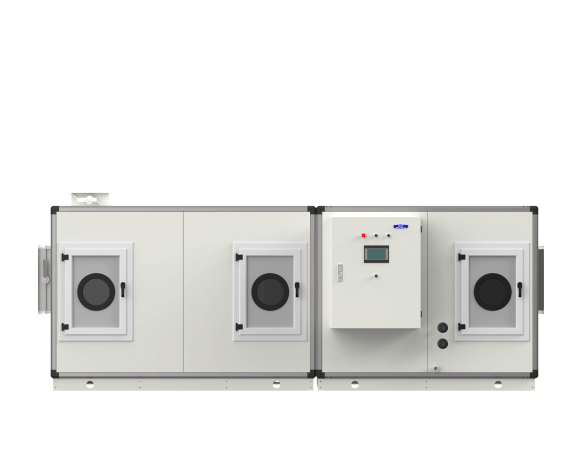

Air Cooled Clean Room Air Handling Unit
Cooling capacity :25kw-120kw
Contact Us > Back >
1. Complied with international AHU standard
2. 30mm/50mm PU insulation with excellent thermal break performance
3. Modular sections to select : Aluminum filter, panel filter ,bag filter ,HEPA filter,TiO2 photocatalyst purification ,electrostatic plasma purification, PM2.5 purification;
4. Constant temperature and humidity control , with reheating and electrode humidifier;
5. Mixing box , primary filter ,direct  expansion cooling coil , reheating section , humidifier ,fan section with diffuser ,air outlet
6. Air cooled condensing units, cooing range 12.5- 120kw , to match all cooling range requirement
7. Positive pressure type AHU , negative pressure type AHU

Air Cooled Clean Room Air Handling Unit-Positive pressure

Model Air flow Air flow range Cooling Heating Humidification ESP Electrode power Total power IDU dimenisons  CU model
PWZK M³/h M³/h KW KW Kg/h Pa KW KW L(mm） W(mm) H(mm)
26AH 5500 ±10% 25.6 15 8 650 4 33.8 4300 1200 1080 PWAO-100
31AH 6500 30.7 15 12 650 4 38.4 4500 1200 1180 PWAO-125
39AH 8500 38.4 20 15 650 5.5 50.1 4500 1500 1180 PWAO-150
52AH 11000 51.2 25 15 650 7.5 61.4 4500 1700 1300 PWAO-200
62AH 13000 61.4 30 20 650 11 82.4 4600 1600 1500 PWAO-250
77AH 16000 76.7 40 25 650 11 92.8 4700 1800 1500 PWAO-300
92AH 18000 92.1 50 30 800 15 118.4 4700 1800 1700 PWAO-360
120AH 26000 119.4 60 40 800 15 153.2 4900 2000 2100 PWAO-480

Air cooled type sections :
Mixing box + Primary filter +Cooling coil + Reheating +Humidifictaion+Fan+Difusser+Medium filter +Air outlet
Notice :Heat pump type ,electirc heater type are options , we provide an external wired controller and 20 m cable for hangling installation


Air Cooled Clean Room Air Handling Unit-Negative pressure

Model Air flow Air flow range Cooling Heating Humidification ESP Electrode power Total power IDU dimenisons  CU model
PWZK M³/h M³/h KW KW Kg/h Pa KW KW L(mm） W(mm) H(mm)
26AH 5500 ±10% 25.6 15 8 650 4 33.8 3300 1200 1080 PWAO-100
31AH 6500 30.7 15 12 650 4 38.4 3500 1200 1180 PWAO-125
39AH 8500 38.4 20 15 650 5.5 50.1 3500 1500 1180 PWAO-150
52AH 11000 51.2 25 15 650 7.5 61.4 3500 1700 1300 PWAO-200
62AH 13000 61.4 30 20 650 11 82.4 3600 1600 1500 PWAO-250
77AH 16000 76.7 40 25 650 11 92.8 3700 1800 1500 PWAO-300
92AH 18000 92.1 50 30 800 15 118.4 3700 1800 1700 PWAO-360
120AH 26000 119.4 60 40 800 15 153.2 3900 2000 2100 PWAO-480

Air cooled type sections : Mixing box + Primary/Medium filter+Cooling coil + Reheating +Humidifictaion+Fan
Notice :Heat pump type ,electirc heater type are options , we provide an external wired controller and 20 m cable for hangling installation
