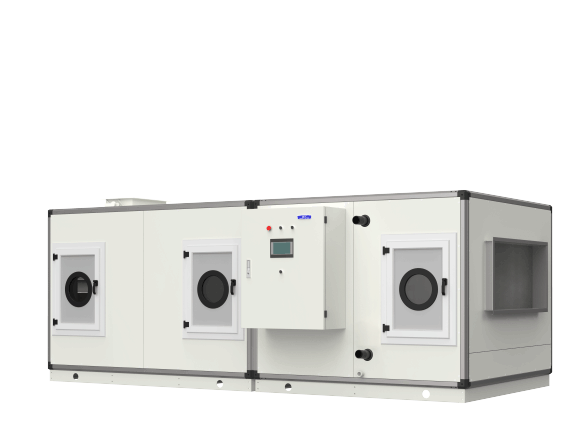

Water Cooled Clean Room Air Handling Unit
Air flow 1,000m3/h-40,000m3/h
Contact Us > Back >
1. Complied with international AHU standard
2. 30mm/50mm PU insulation with excellent thermal break performance
3. Modular sections to select : Aluminum filter, panel filter ,bag filter ,HEPA filter,TiO2 photocatalyst purification ,electrostatic plasma purification, PM2.5 purification;
4. Constant temperature and humidity control , with reheating and electrode humidifier;
5. Mixing box , primary filter ,direct expansion cooling coil , reheating section , humidifier ,fan section with diffuser ,air outlet
6. Water cooled condensing section , cooing range 32- 150kw , to match all cooling range requirement
7. Positive pressure type AHU , negative pressure type AHU

Water Cooled Clean Room Air Handling Unit-Positive pressure

Model  Air flow Air flow range Cooling Heating Humidification ESP Electrode power Total power Water connections  IDU dimenisons
PWZK M³/h M³/h KW KW Kg/h Pa KW KW DN L(mm） W(mm) H(mm)
32WH 5500 ±10% 32 15 8 650 4 32 40 4950 1200 1080
39WH 6500 38.4 15 12 650 4 41.4 50 5150 1200 1180
45WH 8500 45 20 15 650 5.5 52.4 50 5150 1500 1180
65WH 11000 65 25 15 650 7.5 62.8 50 5150 1700 1300
78WH 13000 77.5 30 20 650 11 82 65 5250 1600 1500
93WH 16000 93 40 25 650 11 96.9 65 5350 1800 1500
115WH 18000 115.2 50 30 800 15 117.4 65 5350 1800 1700
150WH 26000 150 60 40 800 15 160.2 65 5550 2000 2100
Water cooled type sections :Condensing section +Mixing box + Primary filter +Cooling coil + Reheating +Humidifictaion+Fan+Difusser+Medium bag filter +Air outlet


Water Cooled Clean Room Air Handling Unit-Negative pressure

Model  Air flow Air flow range Cooling Heating Humidification ESP Electrode power Total power Water connections  IDU dimenisons
PWZK M³/h M³/h KW KW Kg/h Pa KW KW DN L(mm） W(mm) H(mm)
32WH 5500 ±10% 32 15 8 650 4 32 40 3950 1200 1080
39WH 6500 38.4 15 12 650 4 41.4 50 4150 1200 1180
45WH 8500 45 20 15 650 5.5 52.4 50 4150 1500 1180
65WH 11000 65 25 15 650 7.5 62.8 50 4150 1700 1300
78WH 13000 77.5 30 20 650 11 82 65 4250 1600 1500
93WH 16000 93 40 25 650 11 96.9 65 4350 1800 1500
115WH 18000 115.2 50 30 800 15 117.4 65 4350 1800 1700
150WH 26000 150 60 40 800 15 160.2 65 4550 2000 2100

Water cooled type sections :Mixing box + Primary/Medium filter +Cooling coil + Reheating +Humidifictaion+Fan
